| Prix: | 10000USD --15000USD/unit | Engine: | Cummins or Yanmar or Xinchai |
|---|---|---|---|
| load center: | 500mm | mast height: | 3000mm/4000mm/5000mm |
Empilhadeira todo-terreno 3.5 toneladas 4x4 3.5 ton Empilhadeira todo-o-terreno

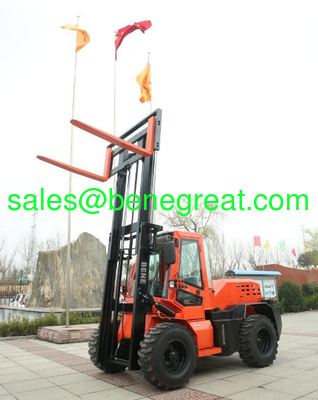

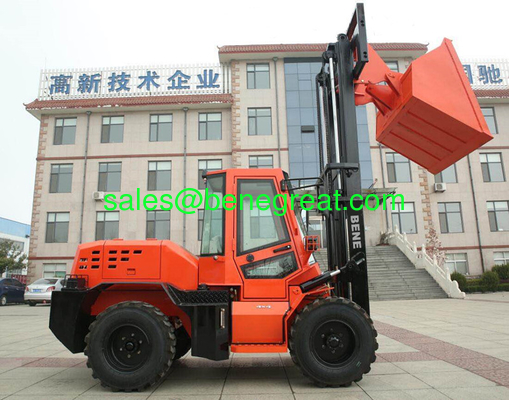

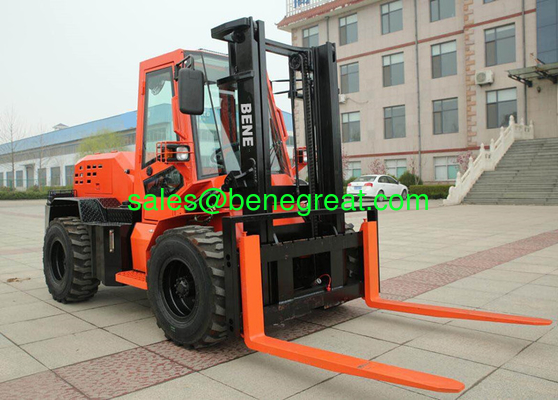

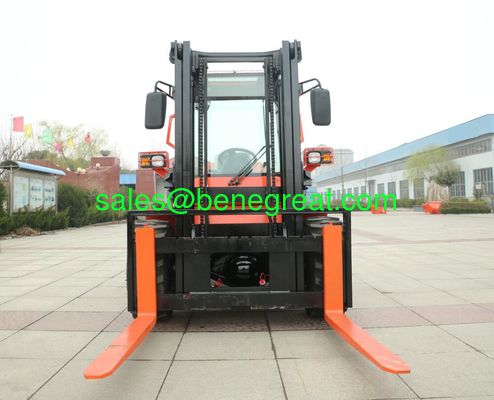

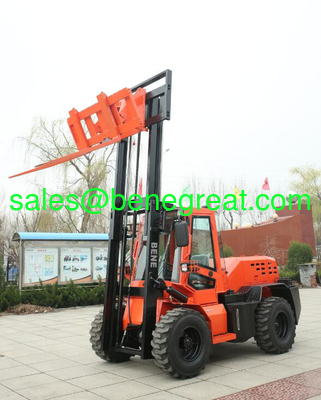

3.5ton all terrain forklift 4x4WD drive 3.5ton rough terrain forklift truck
STRICT ENVIROUMENT PROTECTION DESIGN
We applied a lot of strict environment friendly designs on our 15ton all terrain forklifts products. All these measures efficiently protect the user and improve the environment.
RELIABLE SPECIAD DESIGNED INSTRUMENT
Solid State Digital instrument with built-in intellectual chip, what makes it sensitive, accurate, reliab, low power consumption and long-life. It also works in wide temperature range(-40℃～+80℃) and with high interference resistant capability.
POWERFUL ENGINE AND TRANSIMISSION SYSTEM
Power and transmission system is composed of excellent components by using advanced manufacturing technology and machine and high quality engine. This combination made the truck powerful reliable.
| 3.5ton all terrain forklift main technical parameter | ||||||||
| Serial number | item | Parameter | Note | |||||
| 1 | Rated load (kgs) | 3500 | ||||||
| 2 | Length | without fork(mm) | 3330 | |||||
| 3 | With the fork(mm) | 4550 | ||||||
| 4 | Width (mm) | 1700 | ||||||
| 5 | Height | height of the mast(mm) | 2150 | |||||
| 6 | Wheelbase (mm) | 1840 | ||||||
| 10 | ground clearance | 260 | ||||||
| 11 | Max lifting height (mm) | 3000 | ||||||
| 13 | Forward/Rear tilting angle of mst(°) | 6/.12 | ||||||
| 14 | standard dead weight(no load)(kg) | 4550 | ||||||
| 15 | Full load max lifting speed(mm/s) | 200 | ||||||
| 16 | Min turning radius(mm) | 4900 | ||||||
| 17 | Max speed (no-load)km/h | 28 | ||||||
| 18 | Max climbing degree (full load)% | 22 | ||||||
| 19 | Max Drawbar pull(full load )kN | 75 | ||||||
| 20 | Load center distance mm | 500 | ||||||
| 21 | Engine model | XINCHAI C490BPG | ||||||
| 22 | Engine power(KW) | 40 | ||||||
| 23 | Tyre | 12-16.5 | ||||||
