Détails sur le produit:
Conditions de paiement et expédition:
|
| color: | yellow | engine: | ISUZU C240 |
|---|---|---|---|
| mast height: | 3000mm | transmission: | hydraulic |

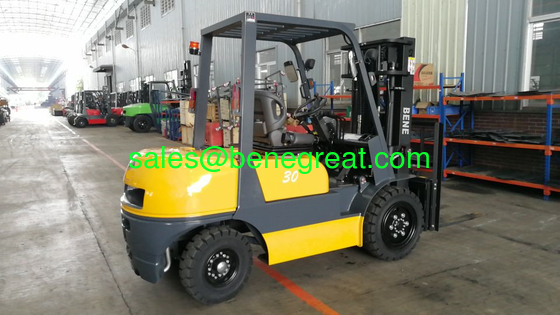

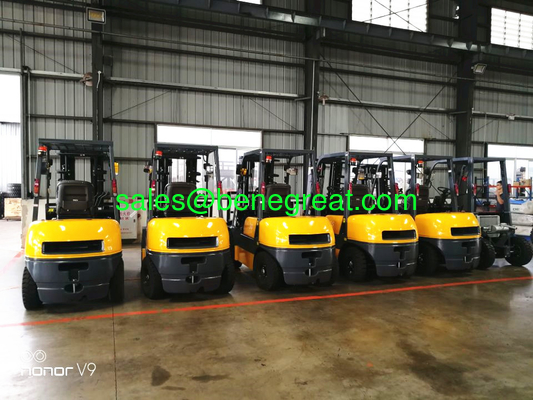

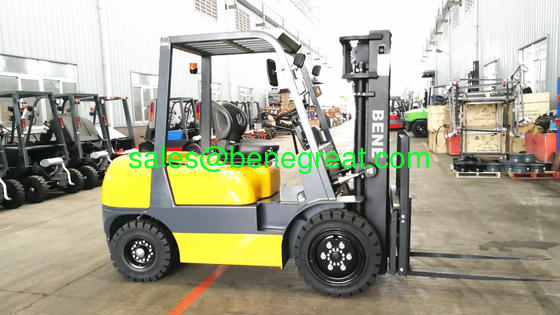

diesel forklift with 6600lbs capacity isuzu engine 3ton lift truck with hydraulic transmission
Description
3.0-4.0T diesel forklift truck is well known for its good stability and flexible utility. It is usually used to lift and stack cargoes in the outdoors. Compared to gasoline engine, diesel engine possesses better power performance and low fuel charge. The engine is not easy to flame out even at low speed. It owns strong overload capacity and long-term working capacity.Our 3.0-4.0T diesel forklift trucks adopt DACHAI, YANMAR, MITSUBISHI and ISUZU engines with excellent hydraulic system. They have been proved to be economic, powerful, safe, durable and reliable.
Parameters
| SPECIFICATION | Item | FD30T/C | FD35T/C | FD40T/C | |
| Load capacity | kg | 3000 | 3500 | 4000 | |
| Load center | mm | 500 | |||
| DIMENSIONS | Max. lifting height(VM300) | mm | 3000 | ||
| Free lift(VM300) | mm | 150 | |||
| Fork size (L×W×T) | mm | 1070*125*45 | 1070*125*50 | 1070*150*50 | |
| Overall length(without fork) | mm | 2705 | 2760 | 2870 | |
| Total width | mm | 1225 | 1285 | 1365 | |
| Mast height (fork lowering) | mm | 2075 | 2150 | ||
| Overall height fork raised | mm | 4250 | |||
| Height to head guard | mm | 2140 | |||
| Truck weight | kg | 4380 | 4780 | 5050 | |
| TIRES | front/rear | 2/2 | |||
| front axle | 28*9-15-12PR | 250-15-16PR | |||
| rear axle | 6.50-10-10PR | ||||
| ENGINE | Model | MITSUBISHI S4S | ISUZU C240 | ISUZU 4JG2 | |
| Rated power | kw/rpm | 35.4/2250 | 34.3/2500 | 44.8/2450 | |
| Rated torque | Nm/rpm | 170/1700 | 138/1800 | 186/1800 | |
| Number of cylinders | 4 | 4 | 4 | ||
| Dislacement | L | 3.059 | 2.369 | 3.059 | |
Optional Engine
FG30,FG35: NISSAN K25
Components
3.0-4.0T diesel counterbalance forklift truck is mainly composed of engine, transmission, operating control device, working device (inside and outside door frame, fork mounting, pallet fork, lifting chain, roller, pulley and others), hydraulic system and electrical system.
