Détails sur le produit:
Conditions de paiement et expédition:
|
| Prix: | 100000-120000USD | Moteur: | Je suis désolée. |
|---|---|---|---|
| transmission: | hydraulic | Capacité de charge: | 10000kgs |

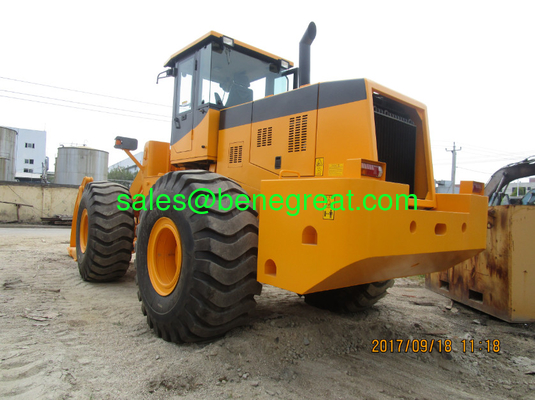

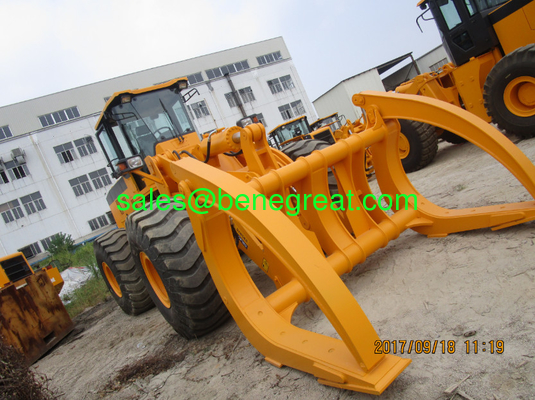

8 ton to 15ton load capacity log loader BEM10T-J wheel loader with clamp
Specification
Rated load 10ton
Bucket capacity 3.5 m3
Max log length 13000mm
Max log diameter 1500mm
Clamp front/rear inclination 55°/40°
Dump height 3200mm
Reach at full lift discharge 1240mm
Overall length 8980mm
Overall height 3870mm
Overall width 3120mm
Tread width 2390mm
Minimum ground clearance 450mm
Turning angle 35°
Grade ability ≥24°
Max. traction force 230KN
Hydraulic cycle time 12sec
Machine weight 31000kg
Engine Cummins 6CTA8.3 260hp
Transmission ZL70A planetary F2/R1 gearbox
Travel speed
Forward I 11km/h
Forward II 29km/h
Reverse 14.5 km/h
Hydraulic oil tank capacity 400L
Diesel fuel tank capacity 400L
Tires type 4*26.5-25-46pr
