| Prix: | 100000-120000USD | engine: | Cummins |
|---|---|---|---|
| transmission: | hydraulic | load capacity: | 10000kgs |

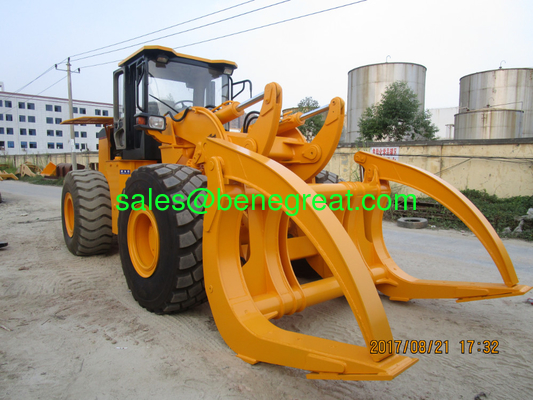

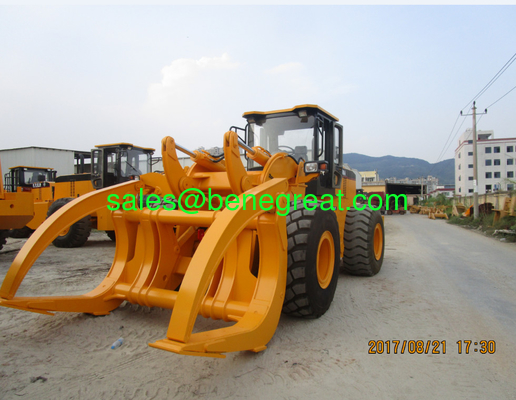

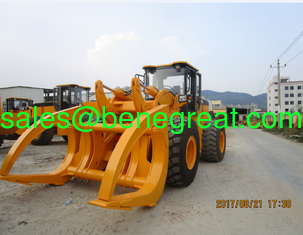

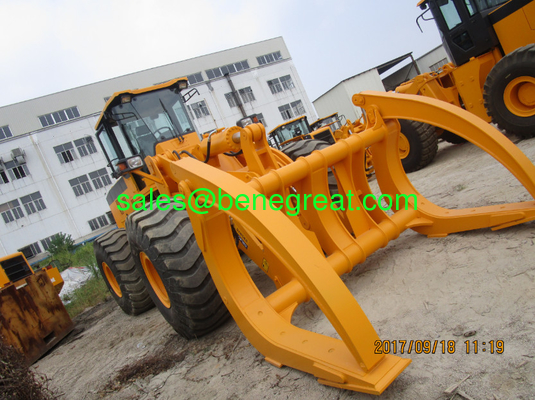

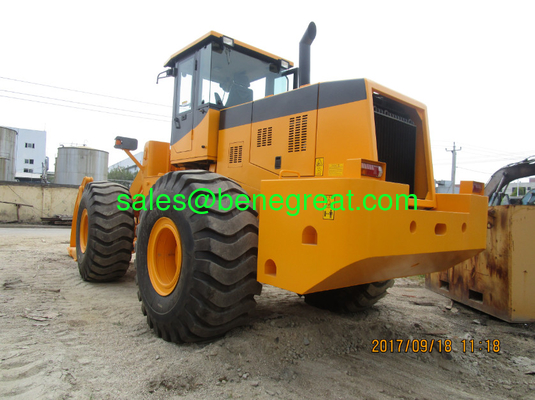

10ton to 12ton wheel loader log loader 10ton/12ton wheel loader with grapples attachments
10 ton wheel loader with cummins engine FD979-J, the grapple capacity up to 10 tons, can vertically and stably clamp log, rail, steel tube and so on at mountainous area and rugged road.
Specification
Rated load 10ton
Bucket capacity 4.5 m3
Max log length 13000mm
Max log diameter 1500mm
Clamp front/rear inclination 55°/40°
Dump height 3200mm
Reach at full lift discharge 1240mm
Overall length 8980mm
Overall height 3870mm
Overall width 3120mm
Tread width 2390mm
Minimum ground clearance 450mm
Turning angle 35°
Grade ability ≥24°
Max. traction force 230KN
Hydraulic cycle time 12sec
Machine weight 31000kg
Engine Cummins 6CTA8.3 260hp
Transmission ZL70A planetary F2/R1 gearbox
Travel speed
Forward I 11km/h
Forward II 29km/h
Reverse 14.5 km/h
Hydraulic oil tank capacity 400L
Diesel fuel tank capacity 400L
Tires type 4*26.5-25-46pr
